  1. Put the handle on the side of the G2000 Push it backwards and make sure it locks
    • Put the handle on the side of the G2000

    • Push it backwards and make sure it locks

    • Fix it with the delivered screws

  2. Attach the inner slide of the rackmount to the G2000
    • Attach the inner slide of the rackmount to the G2000

    • Make sure it is fixed with the screws delivered

  3. Snap the rack slide into the rack Fix it with the delivered cone screw

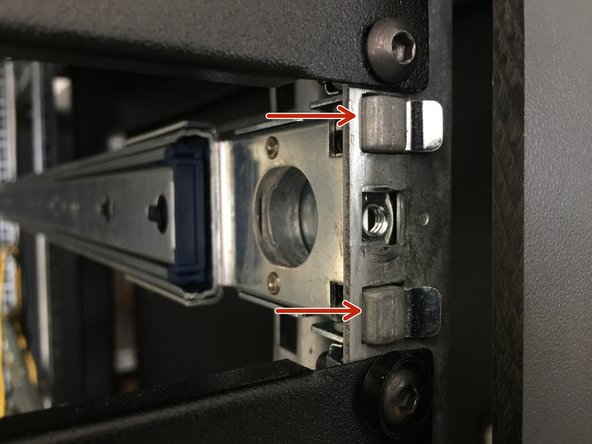

    • Snap the rack slide into the rack

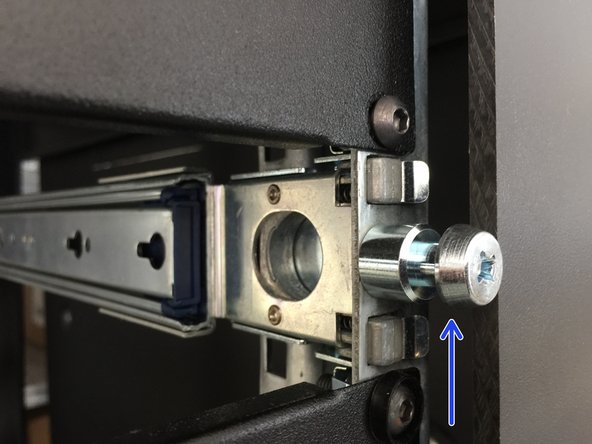

    • Fix it with the delivered cone screw

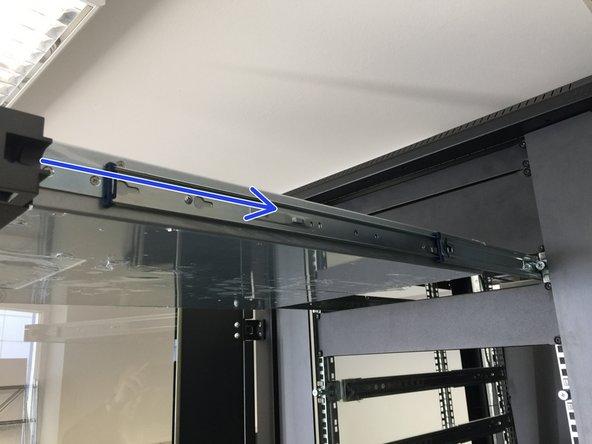

  4. Carefully slide the G2000 into the rack mount
    • Carefully slide the G2000 into the rack mount

    • Push it backwards until the cone screws snap into the handles
