V1.1.3

Minor Versionm

by Rene Weber

  1. Management and Data must not be in the same subnet
    • Management and Data must not be in the same subnet

    • Management and Data may be combined to one interface later

    • Connect 1GB Ethernet to Management port for Configuration via WebUI

    • Connect Ethernet cable to data port.

    • Internal interface if no external card equipped

    • External 10GB card if equipped

  2. Start up your system by connecting the power cables
    • Start up your system by connecting the power cables

  3. G2000 will try to receive IP addresses via DHCP on management and data interfaces If no DHCP server can be found G2000 will assign fallback IP addresses as follows
    • G2000 will try to receive IP addresses via DHCP on management and data interfaces

    • If no DHCP server can be found G2000 will assign fallback IP addresses as follows

    • Management: 192.168.1.1

    • Data: 192.168.2.1

    • The assigned IP addresses may be checked via...

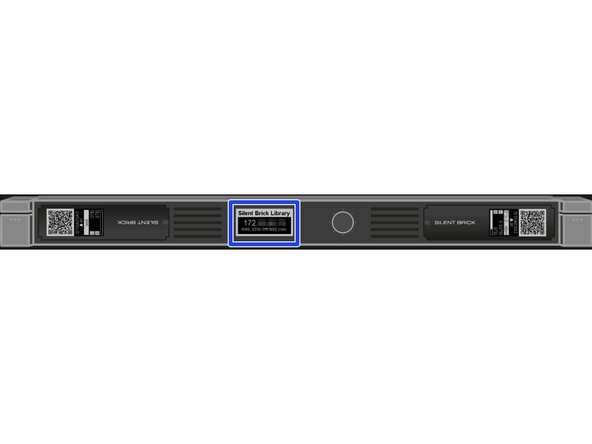

    • ...G2000 EPaper Display

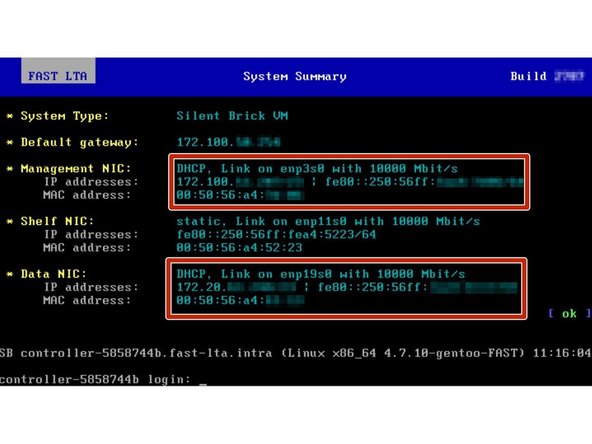

    • ...monitor output

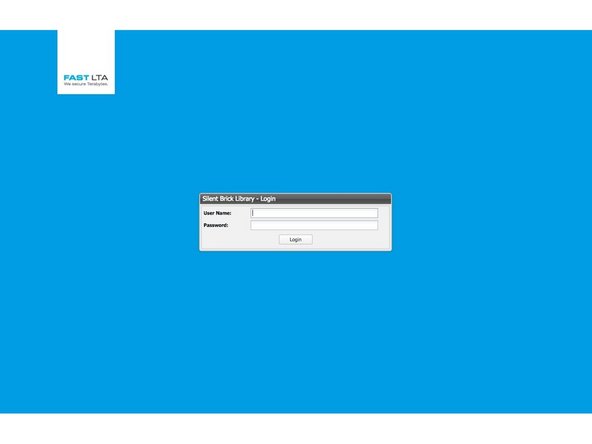

  4. Open the Webinterface via management ip   "https://<ip>/
    • Open the Webinterface via management ip "https://<ip>/

    • Default username: admin

    • Default password: adminadmin
