Introduction

This guide gives a step by step introduction to connecting the FAST LTA Silent Brick WORM Archive in Version 2.20.0.6 to the PoINT Storage Manager in Version 6.3.

  1. Go to Preferences -> SMB
    • Go to Preferences -> SMB

    • Configure Active Directory or add new local user

  2. Assign at least one Brick to the Stage Bricks. Brick may be
    • Assign at least one Brick to the Stage Bricks. Brick may be

    • Standard Brick

    • FLASH Brick

    • WORM Brick. Will be partitioned. Size as needed. Default: 1TB

    • Add one or more Bricks to the Archive

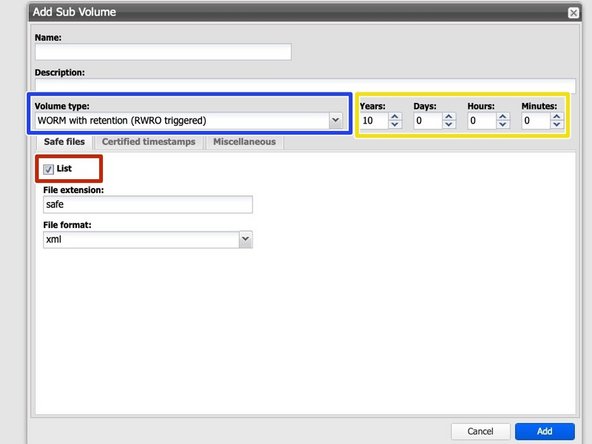

  3. Volume Type: WORM with Retention (RWRO)
    • Volume Type: WORM with Retention (RWRO)

    • Set retention to a default ( here 10 y )

    • Enable listing of Safefiles

  4. To create a SMB Share click 'Add SMB Share'
    • To create a SMB Share click 'Add SMB Share'

    • Share path: /

    • Share name: as desired

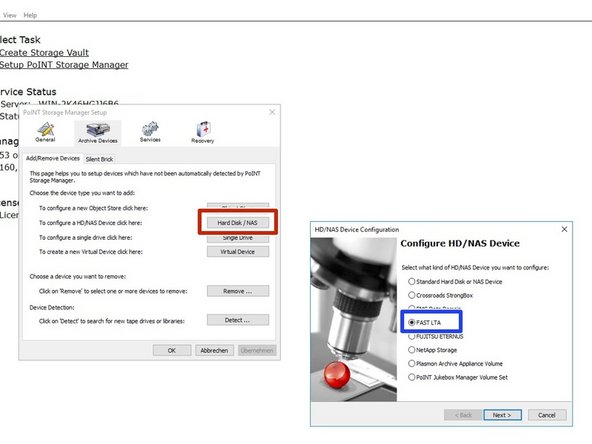

  5. Choose Configure Devices under "Archive Devices" Add new archival Storage by clicking on "Hard Disk / NAS"

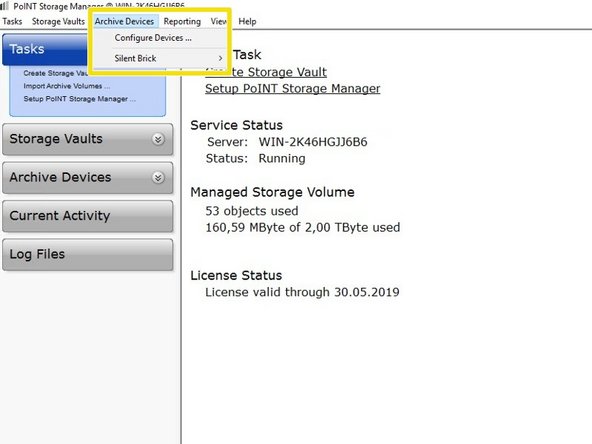

    • Choose Configure Devices under "Archive Devices"

    • Add new archival Storage by clicking on "Hard Disk / NAS"

    • Choose type FAST LTA

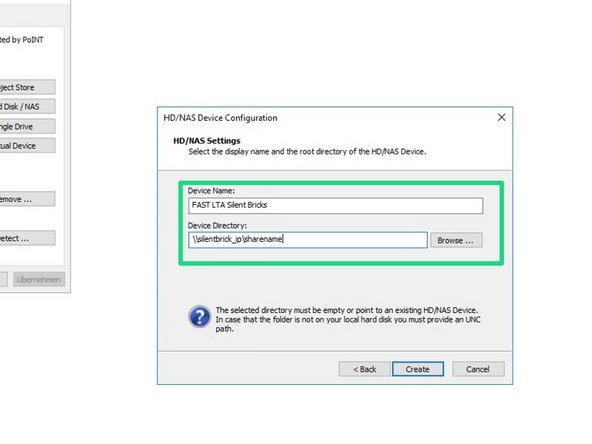

    • Enter Name and Share path previously defined on the Silent Brick System

    • Sharepath is a combination of archive name and share name. See Silent Brick UI for details.

  6. Enter Name and Share path previously defined on the Silent Brick System Sharepath is a combination of archive name and share name. See Silent Brick UI for details.
    • Enter Name and Share path previously defined on the Silent Brick System

    • Sharepath is a combination of archive name and share name. See Silent Brick UI for details.

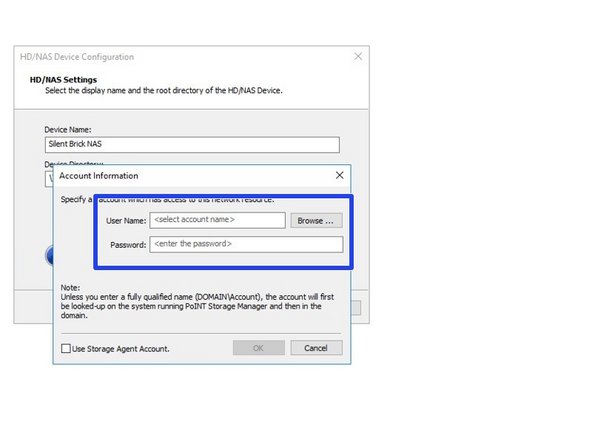

    • Choose user as defined on the Silent Brick System previously.

    • It may be necessary to create a local user account.
