Introduction
This guide describes how to connect Veeam Backup & Replication to a FAST LTA Silent Brick System configured as Virtual Tape Library.
This guide is tested with Veeam 11 and the Silent Brick System Version 2.39
Recommended configuration parameters:
- Tape Library Emulation: Adic Scalar 1000
- Tape Drive Emulation: IBM ULTRIUM
- Block Size: 1 MB
-
-
Open the Silent Brick System GUI via a web browser
-
Choose 'Libraries'
-
Click 'Add'
-
Enter a name
-
Choose the desired library type (See guide details in the first chapter)
-
-
-
Edit 'Drive Name Prefix' if needed.
-
Choose a number of drives.
-
Choose the desired drive type. (See guide details in the first chapter)
-
-
-
Choose the desired amount of Bricks from the list.
-
Use 'CTRL' to choose multiple Bricks.
-
Confirm by clicking 'Add'
-
-
-
Best use with 10GB ethernet
-
Get your iscsi initiator name from Windows
-
Set up an iscsi client via Silent Brick web interface by choosing protocol iSCSI
-
Client Name: Enter the IP or the name of the client windows host
-
Initiator name: Enter the initiator string you retrieved in step 1
-
Authentication: If needed, authentication may be set up. Recommendation is no authentication
-
-
-
Open your Windows Computer Manager and expand "Storage Controllers"
-
Select your iSCSI Initiator and choose properties
-
Switch to Details and choose the property "Class Guid"
-
Open regedit and navigate to HKEY_LOCAL_MACHINE - System - CurrentControlSet - Control - Class - <iSCSI Class ID> - <ID> - Parameters
-
In Parameters adjust the' MaxTransferLength'. This value must match your Tape Block size ( configured later ). 1 MB=0x100000, 512KB=0x80000, 256KB=0x40000. Recommended minimum 256 K
-
-
-
Only supported for controllers with fibre channel
-
Client Name: Enter the IP or the name of the client windows host.
-
Target Port: Choose port to connect to.
-
Port enumeration is from right to left.
-
When set to 'Everyone' the left Port 2 is used.
-
Initiator WWN: Choose partner WWN to connect with.
-
-
-
Connect the created library to your Veeam host via iSCSI or FibreChannel
-

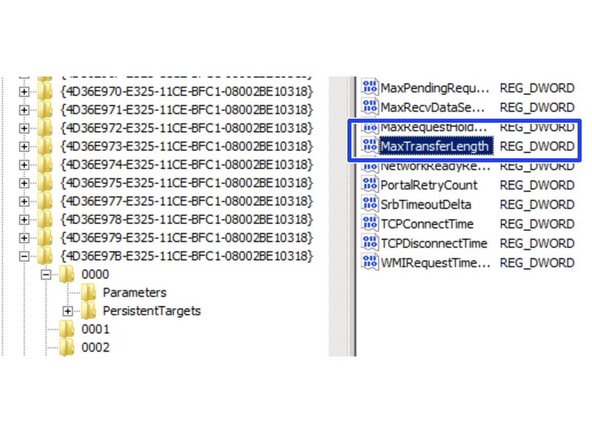

Set the max transfer length via regedit when using iSCSI. Path is HKEY_LOCAL_MACHINE - System - CurrentControlSet - Control - Class - <iSCSI Class ID> - <ID> - Parameters
-
Recommendation: 1M ( Hex: 0x100000 )
-

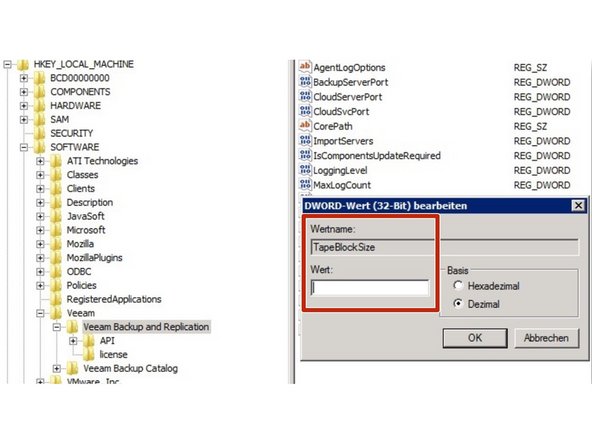

Set the Tape Block Size for Veeam via regedit
-
Recommendation: 1M ( Hex: 0x100000 )
-
-
-

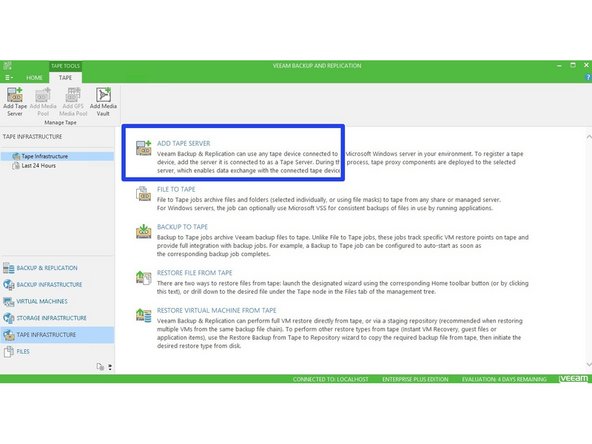

Rescan your tape server in Veeam
-
Add new tape server first if not configured yet
-
Enable 'Native SCSI Support' in the Library properties
-
Define the blocksize in the Tape Drive properties
-
Recommendation: 1M
-
Format new tapes when all values are configured properly
-
Blocksizes will be stored in the tape header. When changing the Blocksize after formatting, a reformat is necessary.
-
-
-
Follow the Veeam instructions for this step.
-
